Information for Cliov6 - Air conditioning.

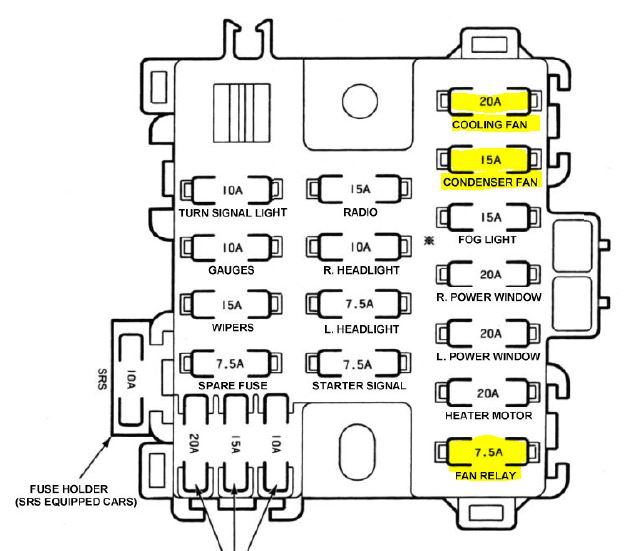

There are 3 fuses which power the varies parts of the AC system, as can be seen in the wiring diagram.

Attachment 2458

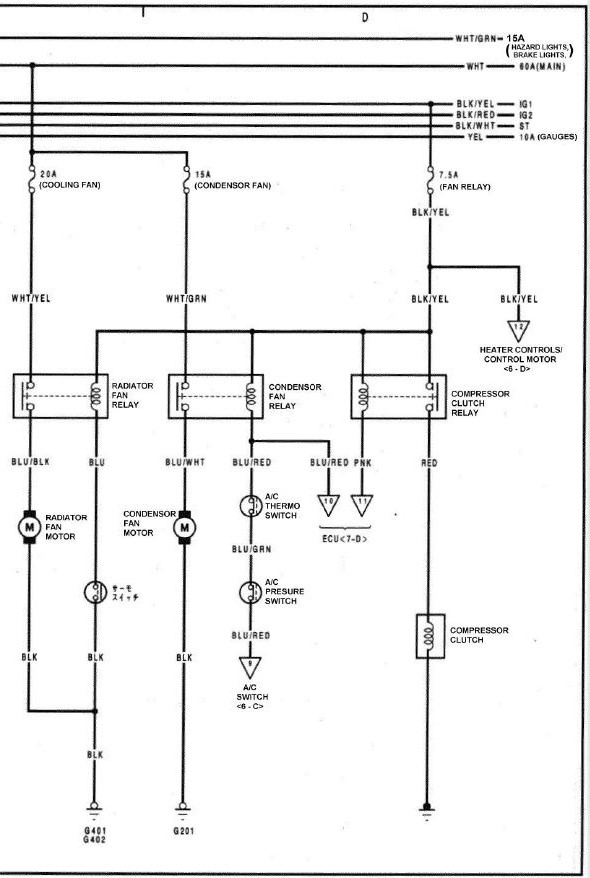

Wiring diagram of AC system showing the 3 relays.

Attachment 2459

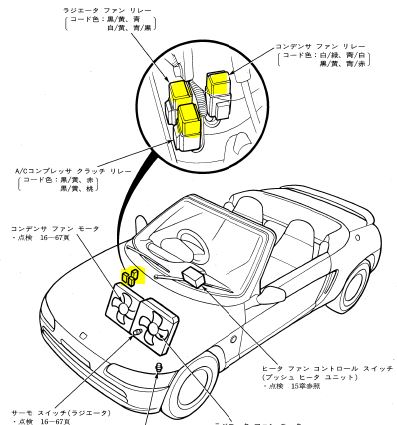

Location of the relays on car.

Attachment 2460

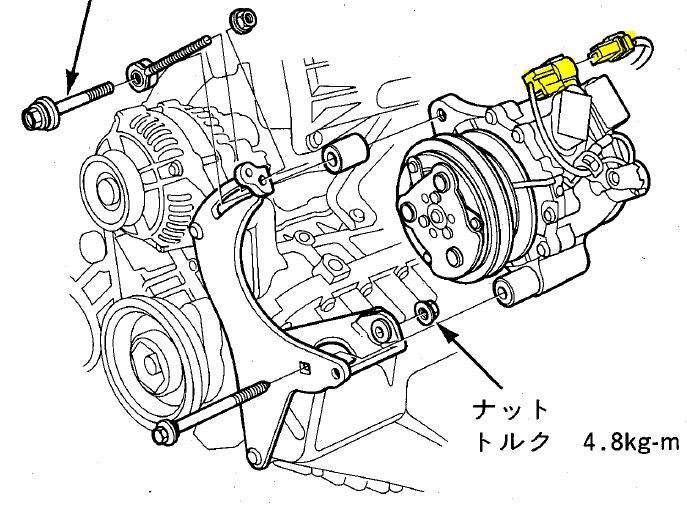

1 pin connector on AC compressor = Power to clutch coil.

Attachment 2461

Some info here about checking Compressor clutch resistance.

http://www.u-ukhbc.co.uk/vbb/showthr...1809#post21809

Thank you very much! I'll check and keep you posted.
